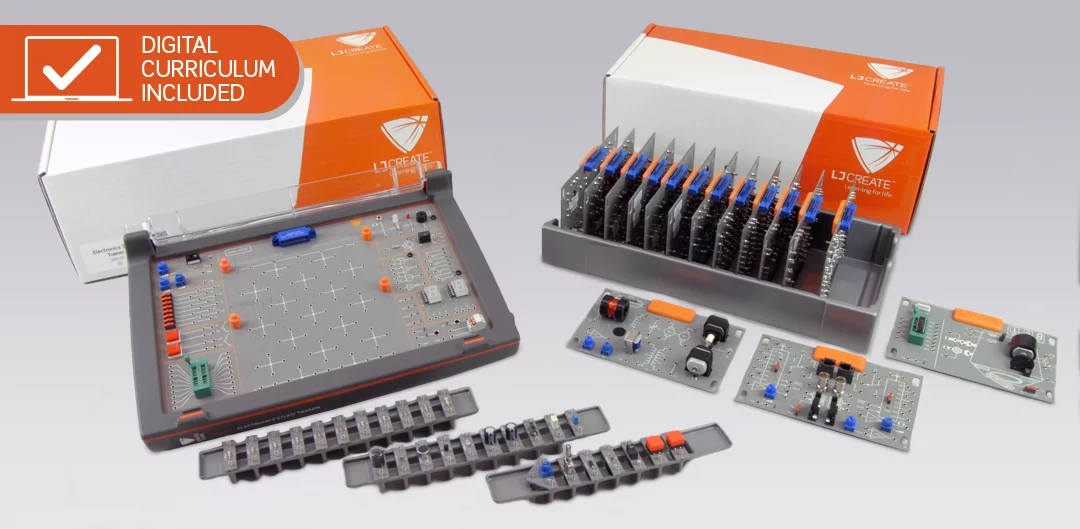

The Complete Electronics Workstation (320-10) comprises an electronics study trainer, a range of plug-in experiment cards, and a component set. Digital curriculum content is also supplied, providing a comprehensive course of electronics study.
The unique design of the electronic study trainer includes a heavy-duty casing with transparent protective cover. When in use, the cover folds back to provide an angled support for the unit. With the cover closed, trainers become stackable for easy storage.
Electronics Study Trainer – Features:
All on-board power supplies are short circuit/overload protected
Connection system for plug-in experiment cards
Patching area for use with component set
Experiment cards and patching area may be used together
Easy-to-use switched fault facility for fault-finding activities on the trainer and experiment cards
On-board signal generator providing square wave and sine wave signal sources
8 logic switches and 2 pushbutton switches for use as control inputs
Zero insertion force socket to accommodate dual-in-line integrated circuits
Buzzer, white and red LEDs, and headphone
OR (x2), AND and inverter gates
Transistor switch and relay
8 logic monitor LEDs for displaying logic outputs
2 red and 2 green LED monitors for traffic light simulation activities
2 seven-segment displays with decoder/drivers
Connection panel provides 2mm and 4mm sockets, test pins for oscilloscope probes and connector for powering prototyping boards
Includes connecting leads, shorting links and power supply adapter
